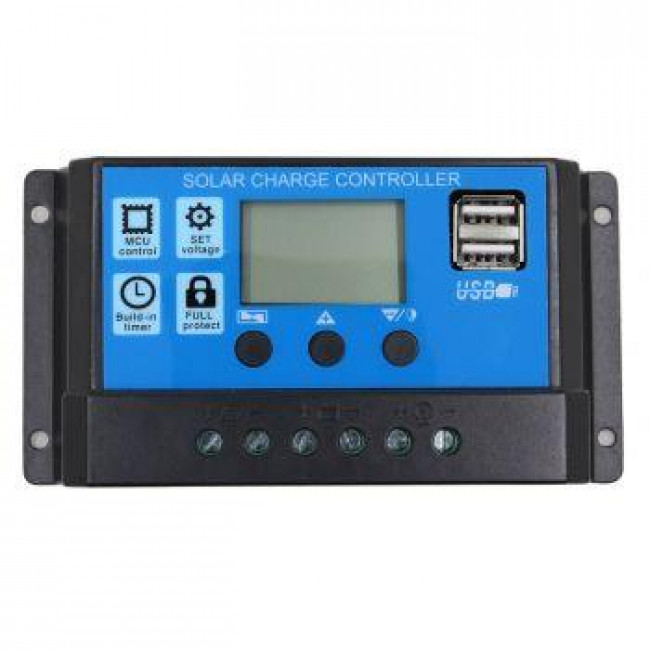

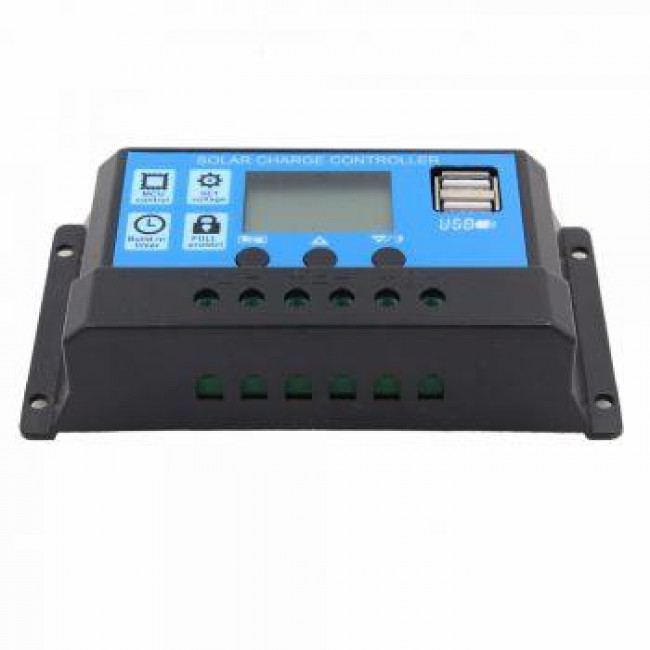

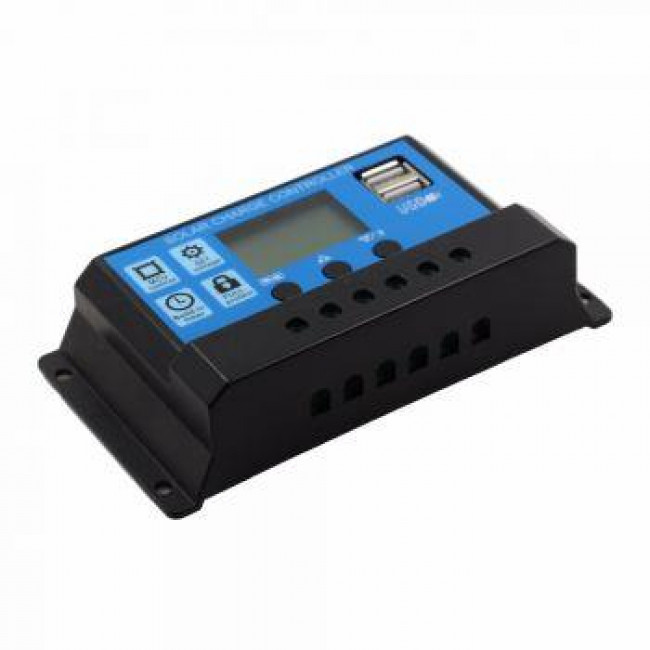

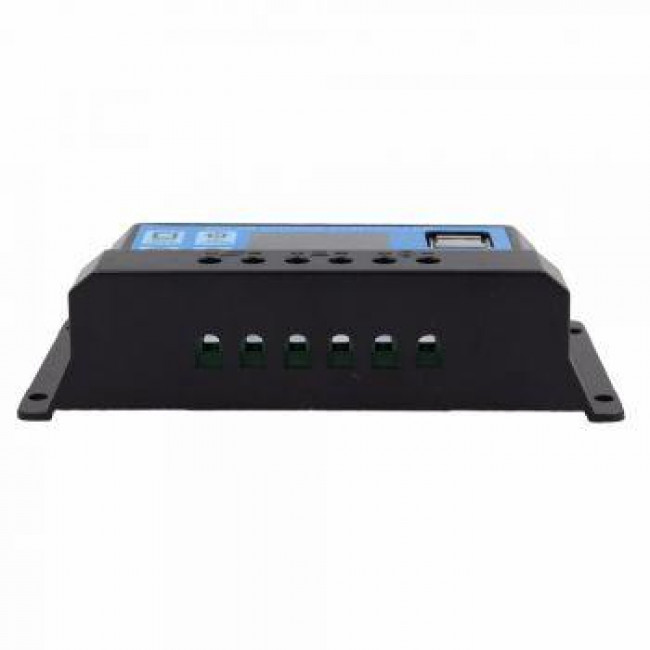

ΡΥΘΜΙΣΤΗΣ ΦΟΡΤΙΣΗΣ ΓΙΑ ΗΛΙΑΚΑ ΠΑΝΕΛ 30A

• The function of the controller is to protect the voltage overshoot and discharge.
• When the battery voltage is too low, the controller to stop output; after the solar panels charging, the battery will return to 12.6 v. It is a natural to output.
• 12.6 v is to restore the discharge voltage.
• When the solar panels to recharge battery float charging voltage can be achieved. It will stop charging. This is called overshoot protection.
• After the battery discharge, the battery outside will flash, this is to remind the user, the configuration is not reasonable, it need to take battery connection.
• The controller normal voltage of 10.8 v to 13.7v. This two voltage fluctuation, you can be set manually.
• Color: Black, Blue
• Material: Plastic
• Max. Charge/Discharge Current: 30A
• Max. Solar Panel Input Voltage: ≤50V
• Rated Voltage: 12V / 24V Auto
• Only For off-Grid PV Solar System.
• For 20A 12V Pv System:
  • 240W Solar Panel
  • 12V Lead-acid Battery
  • 25V for Max input Voltage
• For 20A 24V Pv System:
  • 360W Solar Panel
  • 24V Lead-acid Battery
  • 50V for Max input Voltage?
• USB Output Voltage/Current: Dual 5V 2A
• No Load Loss: ≤10mA
• Temperature Compensation: -3mV/Cell/°C
• Operation Temperature: -20°C~60°C

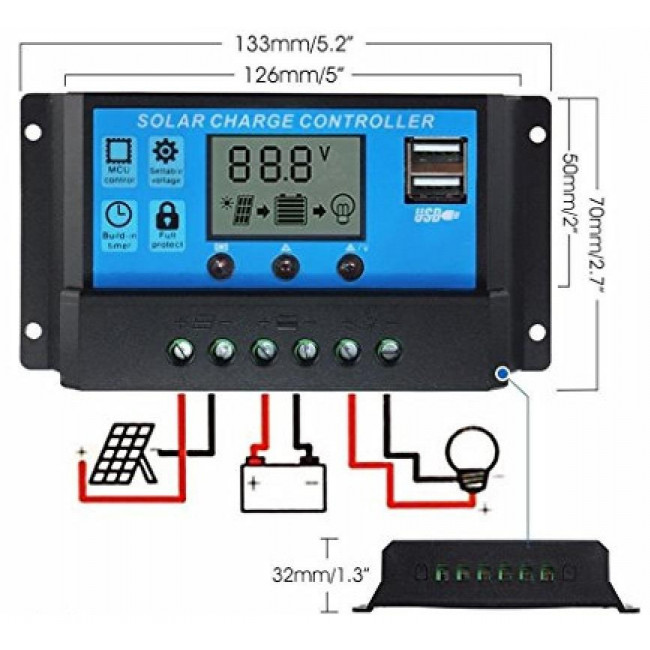

• Item Size: 133.2x69.8x33.5mm
• Item Weight: 119g~152g

Safety Instructions:

• Make sure your battery has enough voltage for the controller to recognize the battery type before first installation.
• The battery cable should be as short as possible to minimize loss.
• The regulator is only suitable for lead acid batteries: OPEN,AGM, GEL it is not suited for nickel metal hydride, lithium ions or other batteries.
• The charge regulator is only suitable for regulating solar modules. Never connect another charging source to the charge regulator.
