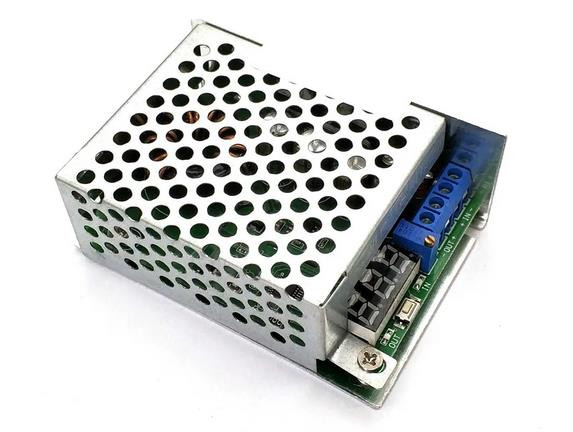

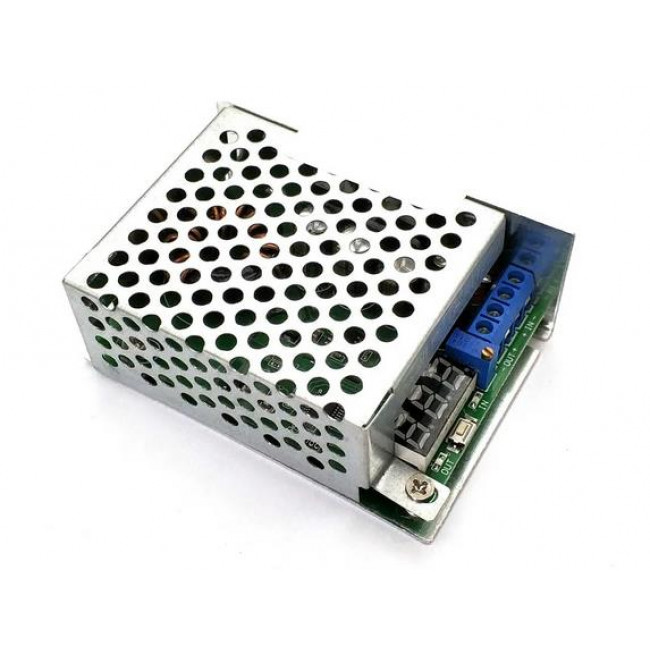

STEP DOWN MODULE 10A 150W ME DISPLAY IN 3,5-30V OUT 0.8-29V

Input Voltage: 3,5-30V input (with wide input voltage range application)

Input Current: 16A(MAX) if more than 8A please add heat sink

Static Working Current: 15mA

Output Voltage: 0,8-29V continuous adjustable

Output Current: 10A MAX if more than 4A, please enhance the cooling

Output Power: Natural cooling 90W , the strengthening heat 150W

Working Temperature: - 40 -85?

Working Frequency: 150kHZ

Conversion Efficiency: Up to 95% (efficiency and the input, output voltage, current and pressure difference)

Short Circuit Protection: There are 15A fuse (input)

Input Reverse Connect Protection: Yes
